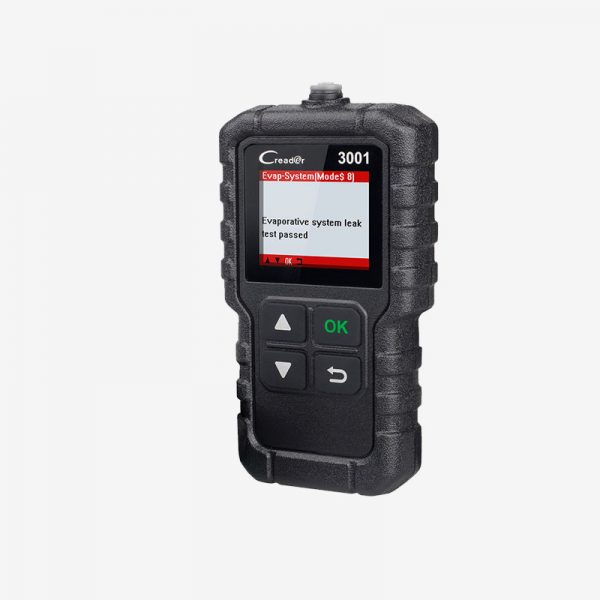

CR3001 Support Engine full OBDII/EOBD diagnostic functions and support obd2 protocols car ,such as:
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)

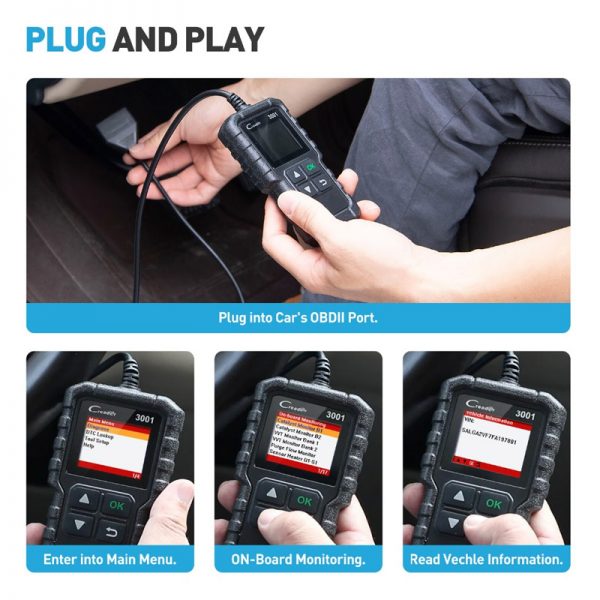

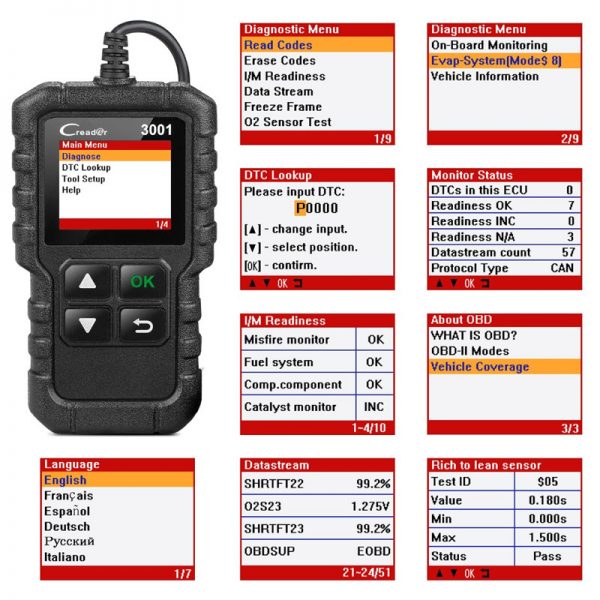

Engine Check including:
Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability

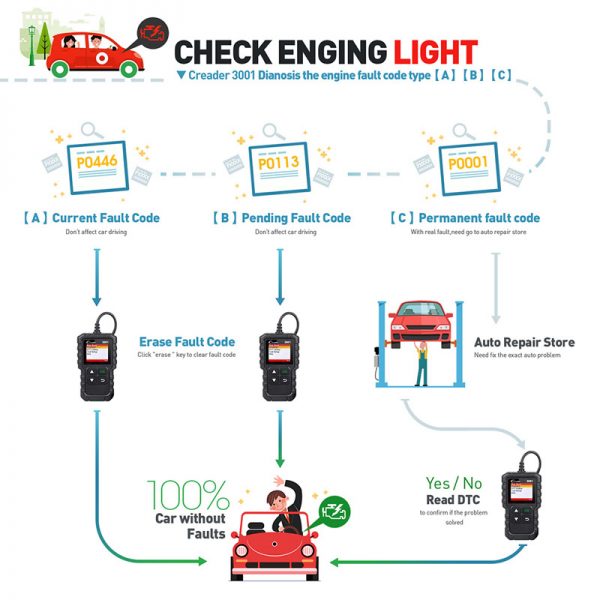

Turn Off ”Check Engine” Light
Parts might cause your check engine light on include:
1. Gas Cap 2. Oxygen Sensor 3. Air Fuel Ratio Sensor 4. Mass Air Flow Sensor 5. Ignition Coils 6. Spark Plug Wires 7. Spark Plugs 8. Thermostat 9. EGR Valve 10. Evaporatative Emission Canister Purge Valve(EVAP) 11. Catalytic Converter.
If the engine light is not turned off in time
it will Cause Serious environmental pollution , Increased fuel consumption,Increased engine noise.Increased in temperature , ect
Why choose CR3001?
How to verify whether the vehicle will pass the emission test with this code reader?
After entering the I/M Readiness, there will be 10 results on the list. Misfire monitor, fuel system, componentmonitor, catalyst monitor, heated catalyst, EVAP system, secondary air sys, 02 sensor, O2 sensor heater EGRand/or WVT. There will be an OK if each of them works fine. [Not all vehicles have these 10 parts]
Support Language: English , French , Russian , Spanish ,German, Italian ,Portuguese
How to change language
Support Car Models for OBDII diagnostic function:
(Note: CR3001 only Support 12V Gasoline& Diesel, Does not support 24V Truck )
American Car :
Need Standard OBD2 Protocols from 2000 to now
for Chrysler , for Ford, for GM, For Jeep …
European Car :
Need Standard OBD2 Protocols from 2003 to now
For Alfa romeo , for SAAB ,for Acura , for Opel , for Audi for Seat , for Peugeot , for Renault
For Bentley , for Skoda , for Daewoo , for Benz , for Daihatsu , for Land Rover , for BMW , for Vauxhall , for Citroen , for Volvo , for Fiat , for VW , for Ford , for Jaguar…
Need Standard OBD2 Protocols from 2006 to now
for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai , for Dacia , for Lexus , for Mazda, for Nissan, for Subaru , for Suzuki, for Toyota…
Need Standard OBD2 Protocols from 2009 to now
Note : if you are not sure whether CER3001 support your car , please send car brand ,model , release year to seller to check it for you
Easy to Carry
The OBD2 scanner’s mini size fits comfortably in the palm of your hand. so that you can carry it around no matter in garage or on a trip.
Dust Cap Design : protect the connector from dust, water, resistant oil and dirtly , no worries while you donrsquot use it .
Register and Update:
Follow the steps described as below to perform the registration and update:
1. Go to http://www.x431.com/CR3001 to enter the product details page.
2. Click “Update Tool” to download it.
3. Decompress and install it on your PC (compatible with Windows XP,
Windows 7, Windows 8 & Windows 10).
4. After installation, connect one end of the USB cable to the USB port of PC,
and the other end to the tool.
5. Once the tool is powered up, launch the update tool on your computer, the
system starts reading the tool. Once it obtains the tool information, it will
directly navigate to the update center.
6. Click [Upgrade] to start updating until the update is complete
